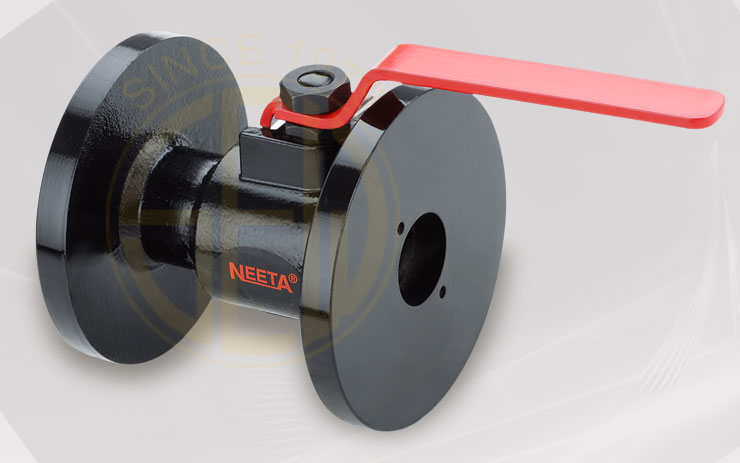

Products › 1 Piece Design Full Bore Flanged Ball Valve

An excellent quality range of 1 Piece Design Full Bore Flanged Ball Valve, our clients can avail from us. This range of 1 Piece Design Full Bore Flanged Ball Valve is known for its best quality and durability. Clients can avail from us this range of 1 Piece Design Full Bore Flanged Ball Valve at most affordable prices.

Our clients can avail from us 1 Piece Flange End Ball Valves that include cast iron ball valve. Furthermore, our team members design these ball valves using S.S. Ball, S.S. Pin, Teflon Sheet and latest production methodologies. All these valves are highly sought after in several industries due to their durability and high tensile strength. These end ball valves are appreciated in the market for their:

• Longer service life
• Excellent finish
• Corrosion resistance

Ball Valves › Sailent Featuress

• One Piece Design Flange End
• Full Port
• Blow out proof stream
• Can be fitted with Actuator
• High Flow Capacity
• Down Stream Sealling & Floating Balls
• Quarter turn Shut off
• Locking arrangement
• Soft seats are recommended for service temperature up to 260ºC and for higher temperatures a metal to metal seating offered
• Mirror Finish Ball
• Longer life without maintenance
• Available in Cast Iron, Cast Steel, Stainless Steel materials

Specification | Materials of Construction
PARTS	Cast Iron / Stainless Steel 304 / 316
BALL	Cast Iron / Stainless Steel 304 / 316
PIN	Manganese Steel (M.S.) / Stainless Steel 304
SEAT	P.T.F.E. / (Teflon)

[ Size in mm ]

Size	15	20	25	32	40	50	65	80	100
X	108	118	127	140	165	178	190	203	229
Y	56	60	64	69	77	83	115	124	144
Z	12.7	19	25.4	31.7	38.1	50.8	63.5	76.2	101.6

Technical Specification
CONSTRUCTION	3 Piece, Floating Ball, Sift Seated, Full Bore
DESIGN & MFG. STD.	As per BS 5351
INSPECTION & TESTING	As per BS 5146
FACE TO FACE	As shown
END CONNECTIONS	Flages as per ANSI B16.5 Raised Face Serrated

Notes:

• Screwed valves are of female B.S.P.N.P.T.
• Customised face to face distance can be given on customer's request.
• Illustrations, specification & data contents given above are accurateh. For continuous improvement & modifications from time to time we may change in products design and dimension without prior notice.
