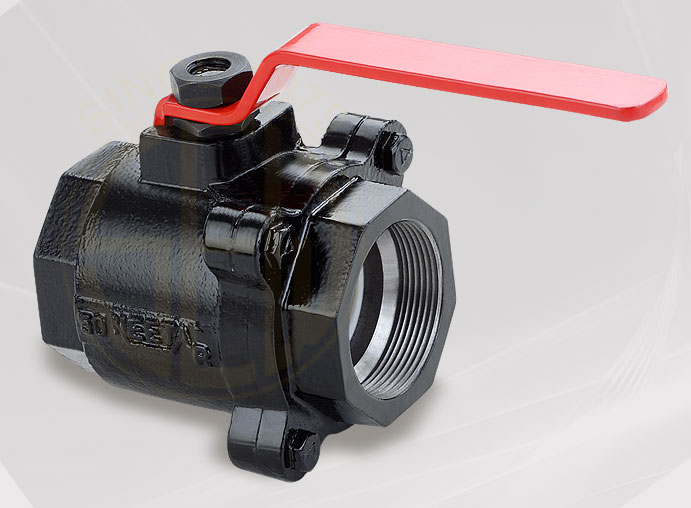

Products › Screwed End Full Bore Ball Valve
An excellent quality range of Screwed End Full Bore Ball Valve, our clients can avail from us. This range of Screwed End Full Bore Ball Valve is known for its best quality and durability. Clients can avail from us this range of Screwed End Full Bore Ball Valve at most affordable prices.
We are considered as one of the most prominent Full Bore Screwed End Ball Valves Manufacturers in Gujarat market. Our screwed end full bore ball valves starts from 15mm to 100mm. We supply efficacious Screwed End Valves that have high tensile strength and consistency in performance. Their efficiency contributes in Bubble Tight Shut Off, High Seat Life, and Low Torque. Consequently, we are recognized as one of the foremost Forged Steel Screwed End Valves Suppliers, based in Gujarat, India.
- Cast iron body and adapters
- 100% Factory tested
- Long service life
- Spares easily available and interchangeable
- Low torque design
- Positive material identification
- Full bore
Ball Valves › Sailent Features
- Screwed End Full Bore Ball Valve
- Full Port
- Blow out proof stream
- Can be fitted with Actuator
- High Flow Capacity
- Down Stream Sealling & Floating Balls
- Quarter turn Shut off
- Mirror Finish Ball
- Longer life without maintenance
- Available in Cast Iron, Cast Steel, Stainless Steel materials
Specification | |
---|---|
PARTS | Cast Iron / S.S.304 / 316 |
BALL | C.I. / S.S. 304 / 316 |
PIN | M.S. / S.S. 304 |
SEAT | P.T.F.E. / CP.P.P. |
Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
X | 70 | 80 | 87 | 99 | 109 | 125 | 140 | 163 | 200 |
Y | 46 | 51 | 57 | 63 | 77 | 85 | 95 | 105 | 131 |
Z | 12.7 | 19 | 25.4 | 31.7 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
Technical Specification | |
---|---|
CONSTRUCTION | Screwed End, Floating Ball, Soft Seated, Full Bore |
DESIGN amp; MFG. STD. | As per BS 5351 |
INSPEC. & TESTING | As per BS 5146 |
FACE TO FACE | As shown |
END CONNECTIONS | Screwed End BSPT/NPT/BSP/Female Ends |
Notes:
- Screwed valves are of female B.S.P.N.P.T.
- Customised face to face distance can be given on customer's request.
- Illustrations, specification & data contents given above are accurateh. For continuous improvement & modifications from time to time we may change in products design and dimension without prior notice.
