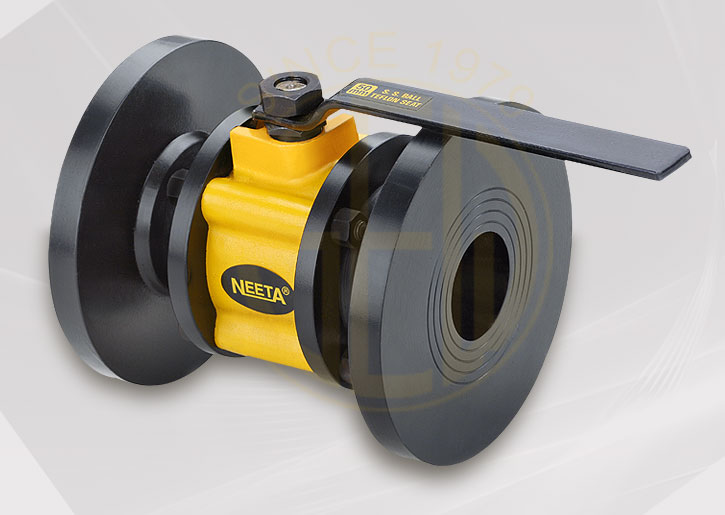

Products › 3 Pieces Design Full Bore Flanged Ball Valve

NEETA VALVES Three Piece Design Flanged End Ball Valve (Reduce / Full Bore) are perfect for handling sticky and viscous fluid, slurries and highly corrosive and hazardous substances. These three piece ball valves can also be used effectively in handling air, water and normal liquid/gas flow. These three piece ball valves are designed as per the industrial standards and are also durable as well as precise. These three piece ball valves are corrosion resistant and easily affordable.

NEETA VALVES THREE PIECE DESIGN FULL BORE FLANGED BALL VALVE comes with P.T.F.E. / Teflon seated High performance Ball Valves gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Neeta Ball Valves come with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Two Piece flanged ends (1/2" to 12") to suit various critical, non-critical applications and pressure rating up to 1500 class in both full bore & regular (reduce) bore design.

Santoshi Engineering Works offers three piece design Fire Safe Ball Valve flanged ends as per quality standard in Full / Reduced Port with Antistatic Device, Blowout Proof Steam with various choice of operation.

FLOATING / TRUNNION MOUNTED: Santoshi Engineering Works manufactures Floating & Trunnion Mounted Fire Safe Ball Valves. In the floating ball design, where sealing takes place by allowing the Ball under pressure to move towards the downstream seat to effect tight seal. For higher sizes and pressure ratings Trunnion mounted ball valves are preferred by industry.

Ball Valves › Sailent Features

• Three Piece Design Flange End
• Full Port
• Blow out proof stream
• Can be fitted with Actuator
• High Flow Capacity
• Down Stream Sealling & Floating Balls
• Quarter turn Shut off
• Mirror Finish Ball
• Longer life without maintenance
• Available in Cast Iron, Cast Steel, Stainless Steel materials

Specification
PARTS	Cast Iron / Stainless Steel 304 / 316
BALL	Cast Iron / Stainless Steel 304 / 316
PIN	Manganese Steel (M.S.) / Stainless Steel 304
SEAT	P.T.F.E. / (Teflon)

[ Size in mm ]

Size	15	20	25	32	40	50	65	80	100
X	108	118	127	140	165	178	190	203	229
Y	56	60	64	69	77	83	115	124	144
Z	12.7	19	25.4	31.7	38.1	50.8	63.5	76.2	101.6

Technical Specification
CONSTRUCTION	3 Piece, Floating Ball, Sift Seated, Full Bore
DESIGN & MFG. STD.	As per BS 5351
INSPECTION & TESTING	As per BS 5146
FACE TO FACE	As shown
END CONNECTIONS	Flages as per ANSI B16.5 Raised Face Serrated

Notes:

• Screwed valves are of female B.S.P.N.P.T.
• Customised face to face distance can be given on customer's request.
• Illustrations, specification & data contents given above are accurateh. For continuous improvement & modifications from time to time we may change in products design and dimension without prior notice.
